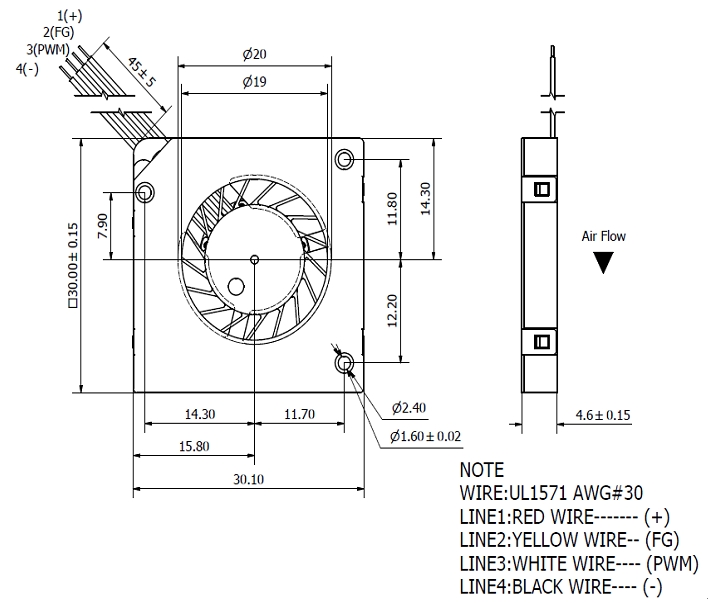

型??? 號 Model Number |
RFB3004H |
|
品名 Product Name |
薄側流扇Slim Blower |
|
額定電壓 Rated Voltage (VDC) |
5.0 |
|
運轉電壓 Operating Voltage (VDC) |
2.8 ~ 5.5 |
|
額定電流 Rated Current (mA) |
84 (max:100) |
|
轉速 Rotation Speed (RPM) |
11,000 ± 20% |
|
風量 Air Flow (CFM) |
1.04 |
|

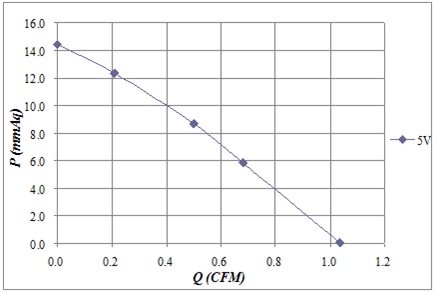

靜壓 Static Pressure (mmAq) |
14.45 |
|
噪音 Noise (dB(A)) at1m |
32.7 |
|
絕緣強度 Insulation Resistance |
10MEGA. Ω Min. at 500VDC (between frame and (+) terminal) |
|
耐壓強度 Dielectric Strength |
5mA Max. at 500VAC、60Hz、One Minute (between frame and (+) terminal) |
|
壽??? 命 Life Expectancy (hours) |
20,000 at45℃ |
|
認??? 證 Compliance |
CE、RoHS |
|
耐水耐塵 IP Rating |
IP58 |
|
重??? 量 Weight (g) |
5 |
|
保護 Protection |
?鎖住保護Lock rotor?? ?自動重啟Auto Restart |
