型 號 Model Number
RFB1804
品名 Product Name
微側流扇 Micro Blower
額定電壓 Rated Voltage (VDC)
3.3
5.0
運轉電壓 Operating Voltage (VDC)
2.8 ~ 3.6
4.5 ~ 5.5
額定電流 Rated Current (mA)
29 (max:35)
41 (max:50)
轉速 Rotation Speed (RPM)
8,000 ± 20%
11,000 ± 20%
風量 Air Flow (CFM)
0.21
0.3

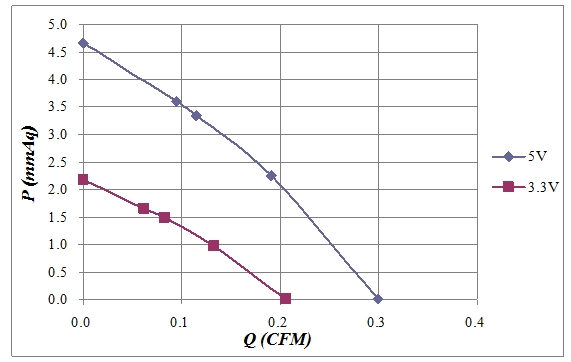

靜壓 Static Pressure (mmAq)
2.17
4.66
噪音 Noise (dB(A)) at 1m
14.6
17.3
絕緣強度 Insulation Resistance
10MEGA. Ω Min. at 500VDC
(between frame and (+) terminal)
耐壓強度 Dielectric Strength
5mA Max. at 500VAC、60Hz、One Minute
(between frame and (+) terminal)
壽 命 Life Expectancy (hours)
25,000 at45℃
認 證 Compliance
CE、RoHS
耐水耐塵 IP Rating
IP58
重 量 Weight (g)
1.74
保護 Protection
?鎖住保護Lock rotor
?自動重啟Auto Restart ?極性保護 Polarity
