型??? 號 Model Number |
RRA3008 |
|
|
品名 Product Name |
軸流扇Axial Fan |
|
|
額定電壓 Rated Voltage (VDC) |
3.3 |
5.0 |
|
運轉電壓 Operating Voltage (VDC) |
2.8 ~ 3.6 |
4.5 ~ 5.5 |
|
額定電流 Rated Current (mA) |
37 (max:45) |
53 (max:65) |
|
轉速 Rotation Speed (RPM) |
4,200 ± 15% |
6,200 ± 15% |
|

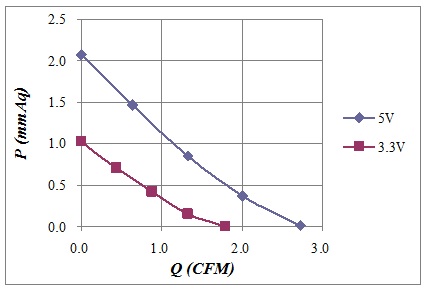

風量 Air Flow (CFM) |
1.79 |
2.72 |
|
靜壓 Static Pressure (mmAq) |
1.02 |
2.07 |
|
噪音 Noise (dB(A)) at1m |
15.9 |
24.3 |
|
絕緣強度 Insulation Resistance |
10MEGA. Ω Min. at 500VDC (between frame and (+) terminal) |
|
|
耐壓強度 Dielectric Strength |
5mA Max. at 500VAC、60Hz、One Minute (between frame and (+) terminal) |
|
|
壽??? 命 Life Expectancy (hours) |
30,000 at 70℃ |
|
|
認??? 證 Compliance |
CE、RoHS |
|
|
耐水耐塵 IP Rating |
IP58 |
|
|
重??? 量 Weight (g) |
3.82 |
|
|
保護 Protection |
?鎖住保護Lock rotor ?自動重啟Auto Restart?? ?極性保護 Polarity |
|
