型 號 Model Number |
RFA1504U |
|
品名 Product Name |
超低電流微軸流扇Ultra-low Power Micro Axial Fan |
|
額定電壓 Rated Voltage (VDC) |
2.4 |
|
運轉(zhuǎn)電壓 Operating Voltage (VDC) |
2.4 ~ 3.3 |
|
額定電流 Rated Current (mA) |
11 (max:15) |
|
轉(zhuǎn)速 Rotation Speed (RPM) |
7,500±20% |
|
風量 Air Flow (CFM) |
0.12 |
|

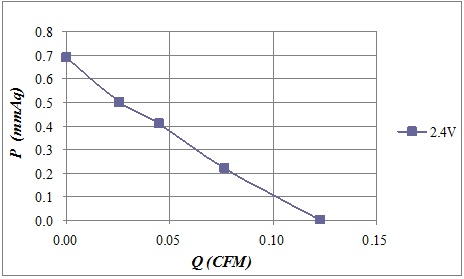

靜壓 Static Pressure (mmAq) |
0.69 |
|
噪音 Noise (dB(A)) at1m |
14.6 |
|
絕緣強度 Insulation Resistance |
10MEGA. Ω Min. at 500VDC (between frame and (+) terminal) |
|
耐壓強度 Dielectric Strength |
5mA Max. at 500VAC、60Hz、One Minute (between frame and (+) terminal) |
|
壽 命 Life Expectancy (hours) |
20,000 at45℃ |
|
認 證 Compliance |
CE、RoHS |
|
耐水耐塵 IP Rating |
IP58 |
|
重量 Weight (g) |
1.27 |
|
保護 Protection |
?鎖住保護Lock rotor ?自動重啟Auto Restart ?極性保護 Polarity |
